Mini Connectors 2.8mm

Availability: In Stock
Model: MNC3
Weight: 0.01kg

Product Detail

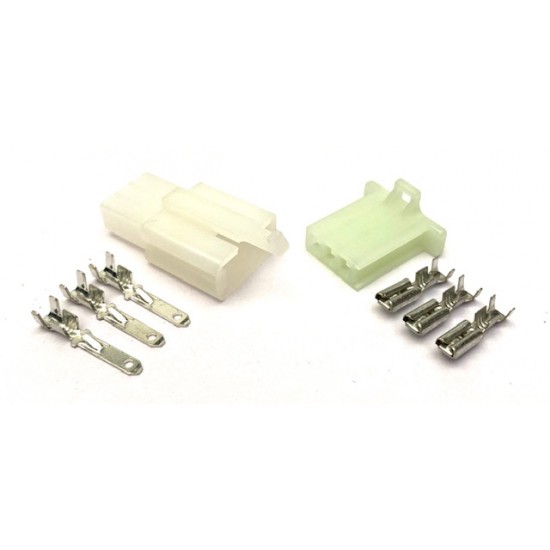

These connectors use 2.8mm blade terminals with latch. Supplied in sets of male & female housings plus terminals.
The terminals are first crimped or soldered onto the cable and then pushed into the housing. A tab on each terminal locates it.

Overall dimensions: (6 way) 35 x 21 x 17mm. For cables up to 1.5mm².
Prices shown for connectors are for complete sets, including both halves and terminals.

Spare terminals : 16405 male & 14303 female.

Sizes available: 2 way, 3 way, 4 way, 6 way and 9 way.

Please choose required number of ways in size options below.
