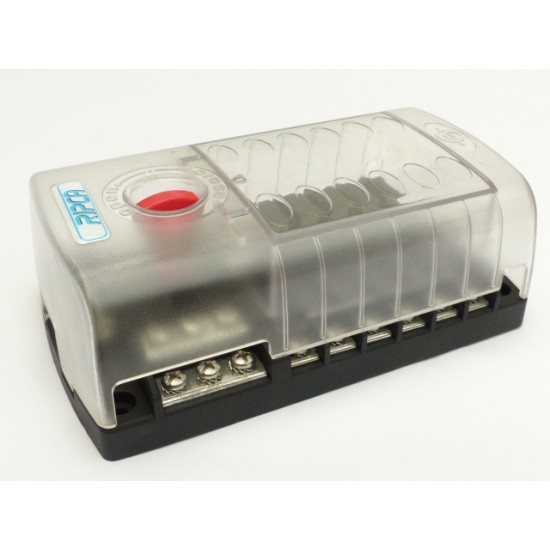

12 Way Fuse Box
12 Way Fuse Box
Consists of two separate banks of 6 fuses with screw connections.Each bank has a common feed for main (+ve) connection.
A common negative bus provides 12 screw connections for negative connections.Main connections by 5mm studs and fuse connections by 4mm screws.
Materials:
Base is reinforced polycarbonate.Cover is clear polycarbonate. Buses are tin plated copper.
Dimensions: Length 164mm x width 94mm x depth 57mm. Ratings: 30A per fuse, 100A per bank. Fuses not included.
A common negative bus provides 12 screw connections for negative connections.Main connections by 5mm studs and fuse connections by 4mm screws.
Materials:
Base is reinforced polycarbonate.Cover is clear polycarbonate. Buses are tin plated copper.
Dimensions: Length 164mm x width 94mm x depth 57mm. Ratings: 30A per fuse, 100A per bank. Fuses not included.
- Availability: In Stock
- Model: 5026B
- Weight: 0.64kg
£34.80
Ex Tax: £29.00
